Security Cameras
Contents
Rules For Use
Security cameras are governed by i3Detroit's Security Camera policy and exist for the safety and prosperity of the space. Use of security cameras was approved originally in 2012. The policy was updated in 2015 to be included in the standing rules. The discussion of the 2015 proposal happened largely in Slack, in the archived channel #camera-policy. The standing rules section was modified in early 2016 to replace the 4-person viewing team with the Board of Directors. It was again modified in early 2017 to expand the viewing team to consist of at least one director and either one other director, officer, or zone coordinator. The full rules:
- The Security Camera Policy is the business of the General Membership and as such will be made and amended by a majority vote of the General Membership.
- The Technical Point of Contact for the security camera system will be the Infrastructure Zone Coordinator or their designee, who will handle
- Requests to view real-time camera streaming
- Complaints/suggestions about the security camera system at i3Detroit
- Requests to reposition cameras
- Other issues of technical implementation
- Storage of Footage
- The past 60 days of footage shall be stored.
- Specific footage may be saved for an indefinite period of time as needed for investigation purposes.
- Camera Location and Positioning
- The current approved list of camera locations is available on the wiki.
- A camera location can be added or removed from the current list by a majority vote of the General Membership.
- Zone Coordinators may make minor adjustments of the viewing angle of cameras in their zone.
- Real-Time Camera Access
- Any member may, under the supervision of a board member/officer/zone coordinator, view real-time security camera footage when at i3 Detroit for the purpose of confirming camera views.
- The infrastructure Zone Coordinator or delegate may view real-time security camera footage for maintenance purposes when at i3Detroit.
- No other active monitoring of the camera system is permitted.
- Request to View Historical Footage
- A member or members may request to view historical video by contacting the Board.
- Footage may be viewed when approved by and accompanied by one member of the board of directors and one member of either the Board of Directors, Corporate Officers or Zone Coordinators.
- Information about an approved request will be posted to the mailing list by the Board, said information to include the requesting member(s) and the specifics of which footage was requested.
- Non-video or image information from the viewing will be distributed to appropriate members as deemed necessary by the requesting member(s) only.
- Other Rules:
- Off site viewing of the footage of the camera system is not permitted.
- No other unattended cameras may be installed or operated.
- There is no special physical security measures of the security camera system required by this policy.

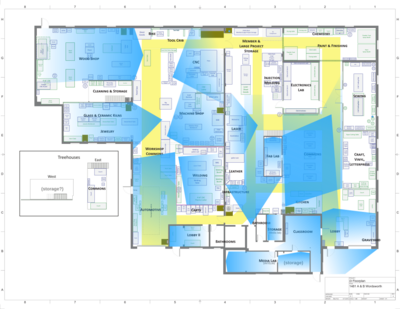

Camera Locations
List of Current Cameras
| Location | View (not live) |
|---|---|
| Classroom |
|
| Craft Room |
|
| CNC Shop |
|
| Commons Area |
|
| Commons Area & Snack Zone |
|
| Electronics Lab |
|
| Fab Lab |
|
| Front & Garage Doors |
|
| Front Door Exterior |
|
| Laser Zone |
|
| Machine Shop 1 |
|
| Machine Shop 2 |
|
| Media Lab |
|
| Suite B Rear Doors |
|
| Suite B Rear Doors |
|
| Suite B Shop Doors |
|
| Tool Crib |
|
| Welding Zone |
|
| West Shop (Bike, Vinyl, & Jewelry zones |
|
| Wood Shop North |
|
| Wood Shop South & Tool Crib benches |
|
History of Camera Location Approval
- Original list from Board_Meeting_Minutes_20121113
- Slightly modified list voted on via email vote: Membership Proposal 20121115 Allow Placement of Cameras
- List updated in early 2016
- List updated again: Meeting Minutes 20160517#Request for additional security camera
- Another update: Meeting Minutes 20170307#Camera Placements
- Note: The outside camera was in the original list, but not in the actual voted-on list. However, at the time of the 2016 update, the outside camera was presumed to be approved. It's not super relevant since we don't have an outdoor camera set up (as of 2-17-16), but it should probably be officially re-approved.
- Approved Media Lab camera at Minutes:Meeting Minutes 20180605
- Approved three cameras in Suite B at [[1]]
Status Report from Project Lead
POC:Mike
- 18 of 18 approved planned cameras have been installed. See below for technical details.
- (10/19/17) System is in working order and has been for several months now.
- (6/9/2018) System still working well, no major issues. 15/18 cameras have 240+ days continuous uptime.
To Do
| Task Name | Description | Priority | Champion |
|---|---|---|---|
| Reconfigure Network for camera VLAN | Move all the cameras over to their own VLAN separate from the main public network. | 3 | |
| Install GPU in VMServer | Install an Nvidia 6xx or newer GPU to enable GPU accelerated h.264 encoding for archived video. | 5 |
Technical Details of Zoneminder & IP Camera System
- Zoneminder v1.32.1 running on VMServer
- 1x 4TB Western Digital Purple Surveilance, 1x 4TB Western Digital Red hard disks installed in the VMServer
- 18 wired PoE IP cameras
- 13xHikvision 4.1MP DS-2CD2042WD-I 4mm IP Camera
- 5xHikvision DS-2CD2432F-IW 3MP Indoor 2.8mm IP Camera
Maintenance Scripts
Archving
Zoneminder currently stores all data as jpeg frames. This is nice and simple, but uses 10 times as much disk space as the data does once encoded as h264 video. This script is set to run daily to archive the previous day as h264 video, one file per 1-hour period per camera. It also makes sure back-ups were done on previous days.
#!/bin/bash
# get a list of active monitor numbers from zoneminder
# I have no idea how this works but it does
camrange=$(zmu -U USERNAME -P PASSWORD -l | awk '{ print $1}' | sed 's/Id//g' | sed ':a;N;$!ba;s/\n/ /g')
# associate plaintext names with monitor numbers for humans
for i in {0..25}; do cameralist[$i]="undefined"; done
cameralist[1]="Entry"
cameralist[4]="E-Lab"
cameralist[7]="FabLab"
cameralist[8]="Classroom"
cameralist[9]="Craftroom"
cameralist[10]="MediaLab"
cameralist[11]="Welding"
cameralist[12]="Lasers"
cameralist[13]="MachineShopWest"
cameralist[14]="ToolCrib"
cameralist[15]="WoodShopNorth"
cameralist[16]="CommonsSW"
cameralist[17]="WestShop"
cameralist[18]="WoodShopSouth"
cameralist[19]="ExteriorSE"
cameralist[20]="CNCZone"
cameralist[21]="CommonsNE"
cameralist[22]="MachineShopEast"
# get an offset date value - offset must be >= 1 unless libtimetravel is installed
offset=$1
year=$(date +"%Y" -d "-${offset}days")
month=$(date +"%m" -d "-${offset}days")
day=$(date +"%d" -d "-${offset}days")
shortyear=$(date +"%y" -d "-${offset}days")
nextdayoffset="$((offset-1))"
nextday=$(date +"%d" -d "-${nextdayoffset}days")
nextdaymonth=$(date +"%m" -d "-${nextdayoffset}days")
nextdayyear=$(date +"%Y" -d "-${nextdayoffset}days")
ArchiveDir="/Archive/directory"
# directories to put stuff
mkdir $ArchiveDir/$year
mkdir $ArchiveDir/$year/$month
mkdir $ArchiveDir/$year/$month/$day
#backup the SQL database info for the day's events
mysql --user=redacted --password=zmpass --database=zm -e "select * from Events where StartTime >= '$year-$month-$day 00:00:00' AND StartTime < '$nextdayyear-$nextdaymonth-$nextday 00:00:00';" > /mnt/cameraArchive/metadata/$year-$month-$day-metadata.txt
# Doing the backups
for cam in $camrange
do
mkdir $ArchiveDir/$year/$month/$day/$cam-${cameralist[$cam]}
mkdir $ArchiveDir/$year/$month/$day/$cam-${cameralist[$cam]}/logs
for hour in {00..23}
do
# Write a list of frames to a file, in a format to pass to ffmpeg
for f in /var/cache/zoneminder/events/$cam/$shortyear/$month/$day/$hour/*/*/*.jpg
do
echo "file '$f'" >> $ArchiveDir/$year/$month/$day/$cam-${cameralist[$cam]}/logs/${hour}00.log
done
# Do the actual conversion - throw every jpeg in the whole hour (in the range X0000-X9999) into one video file
# Currently have no fancy output parameters. -r 25 sets 25fps, which is totally arbitrary and doesn't really matter.
# Most monitors are recording at 4 or 6 fps, so this just speeds up playback/review.
# ffmpeg was self-compiled due to Debian's ffmpeg/libav debacle
echo "Processing $year $month $day - Hour $hour - $cam ${cameralist[$cam]}"
/home/mkfink/bin/ffmpeg -f concat -safe 0 -i $ArchiveDir/$year/$month/$day/$cam-${cameralist[$cam]}/logs/${hour}00.log -vf scale=iw*.75:ih*.75 -pix_fmt yuv420p -map 0 $ArchiveDir/$year/$month/$day/${cam}-${cameralist[$cam]}/${cam}-${cameralist[$cam]}-$year$month${day}_${hour}00.mkv
done
done
chown -R www-data:www-data $ArchiveDir/$year/$month/$day
# Create a log file indicating the backup has finished
# and throw a note into slack that the job finished
pretext="Archiving complete for "
dash="-"
posttext=". Size of day encoded is "
daysize=$(du -hs $ArchiveDir/$year/$month/$day | awk '{print $1}')
zmsize=$(du -hsc /var/cache/zoneminder/events/*/$shortyear/$month/$day/ | tail -n1)
postposttext=" from ZM data size "
text=$pretext$year$dash$month$dash$day$posttext$daysize$postposttext$zmsize
# make the log file
echo $text > $ArchiveDir/$year/$month/$day/backupcomplete.log
webhook_url="redacted"
channel=#statusbots
# send to slack
escapedText=$(echo $text | sed 's/"/\"/g' | sed "s/'/\'/g" )
json="{\"channel\": \"$channel\", \"text\": \"$escapedText\"}"
curl -s -d "payload=$json" "$webhook_url"
# check for missing backups
testoffset=$offset
missingdays=0
dayexists=0
while [ $dayexists == 0 ]
do
((testoffset++))
testyear=$(date +"%Y" -d "-${testoffset}days")
testmonth=$(date +"%m" -d "-${testoffset}days")
testday=$(date +"%d" -d "-${testoffset}days")
if [ -f "$ArchiveDir/$testyear/$testmonth/$testday/backupcomplete.log" ]
then
dayexists=1
echo "true"
else
((missingdays++))
echo $dayexists$testyear$testmonth$testday
fi
done
# complain about missing backups
if [ $missingdays -gt 0 ]
then
pretext2="Alert! Backups are incomplete or missing for "
posttext2=" days. Please manually start backups."
text2=$pretext2$missingdays$posttext2
escapedText=$(echo $text2 | sed 's/"/\"/g' | sed "s/'/\'/g" )
json="{\"channel\": \"$channel\", \"text\": \"$escapedText\"}"
curl -s -d "payload=$json" "$webhook_url"
fi
|
Maintenance
Sometimes cameras get disconnected and zoneminder shows a blank blue 'no signal' image. This runs a few times a day, checking to see if any cameras are doing this.
#!/bin/bash
# get a list of active monitor numbers from zoneminder
range=$(zmu -U USERNAME -P PASSWORD -l | awk '{ print $1}' | sed 's/Id//g' | sed ':a;N;$!ba;s/\n/ /g')
for x in $range
do
#echo $x
zmu -U USERNAME -P PASSWORD -i -m $x
redval=$(convert Monitor$x.jpg -scale 1x1\! -format '%[fx:int(255*r+.5)]' info:-)
greenval=$(convert Monitor$x.jpg -scale 1x1\! -format '%[fx:int(255*g+.5)]' info:-)
blueval=$(convert Monitor$x.jpg -scale 1x1\! -format '%[fx:int(255*b+.5)]' info:-)
if [ $blueval -gt 190 ] && [ $redval -lt 4 ] && [ $greenval -lt 4 ]
then
#Run a script to complain about this in Slack
/home/mkfink/camscripts/camwarn.sh $x
fi
rm Monitor$x.jpg
done
|
Zoneminder does a good job policing its own disk use (as long as it's not generating data faster than it deletes it, which happened once. Oops.) but just to make sure, and to keep track of the h264 archiviving, this reports disk use to slack every day.
#!/bin/bash
#get current disk usage percent as a number
CURRENT=$(df /mnt/cameraCurrent | grep / | awk '{ print $5}' | sed 's/%//g')
ARCHIVE=$(df /mnt/cameraArchive | grep / | awk '{ print $5}' | sed 's/%//g')
webhook_url="redacted"
channel=#statusbots
now=$(date)
pretext="Active camera disk usage is "
posttext="%. "
pretext2="Archive disk usage is "
text=$pretext$CURRENT$posttext$pretext2$ARCHIVE$posttext
escapedText=$(echo $text | sed 's/"/\"/g' | sed "s/'/\'/g" )
json="{\"channel\": \"$channel\", \"text\": \"$escapedText\"}"
curl -s -d "payload=$json" "$webhook_url"
|
